MAX Connector
PROMETHEUS
お1人様3点まで
日本国外でLayLax商品をお買い求めのお客様へ
Direct international shipping is not available. Please check below for your local retailers.
Find Local Retailers
*This product is a custom part designed for use with amusement guns intended for ages 18 and older. Please do not use it for any purpose other than its original purpose. *Although every effort has been made to ensure the quality of the product, please make sure there is no damage before use. Do not use the product if it is defective. We are not responsible for damage or accidents caused by incorrect use, so please handle with care. Please keep out of reach of small children when storing. *The product may deform, discolor, or deteriorate if left in direct sunlight, in a car under the blazing sun, or in a hot and humid place for a long period of time. *If the product is subjected to strong impact, it may be deformed or damaged. The product may discolor due to usage conditions or deterioration over time. *Specifications are subject to change slightly from lot to lot without notice.

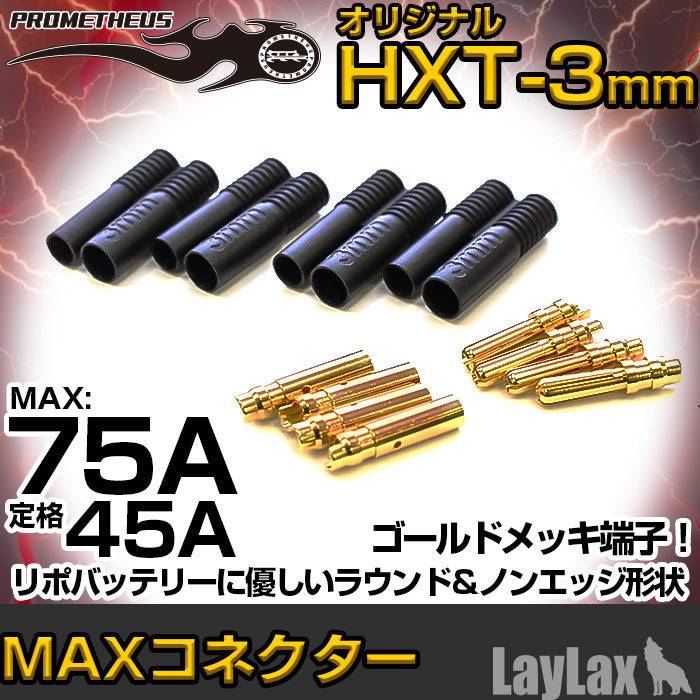

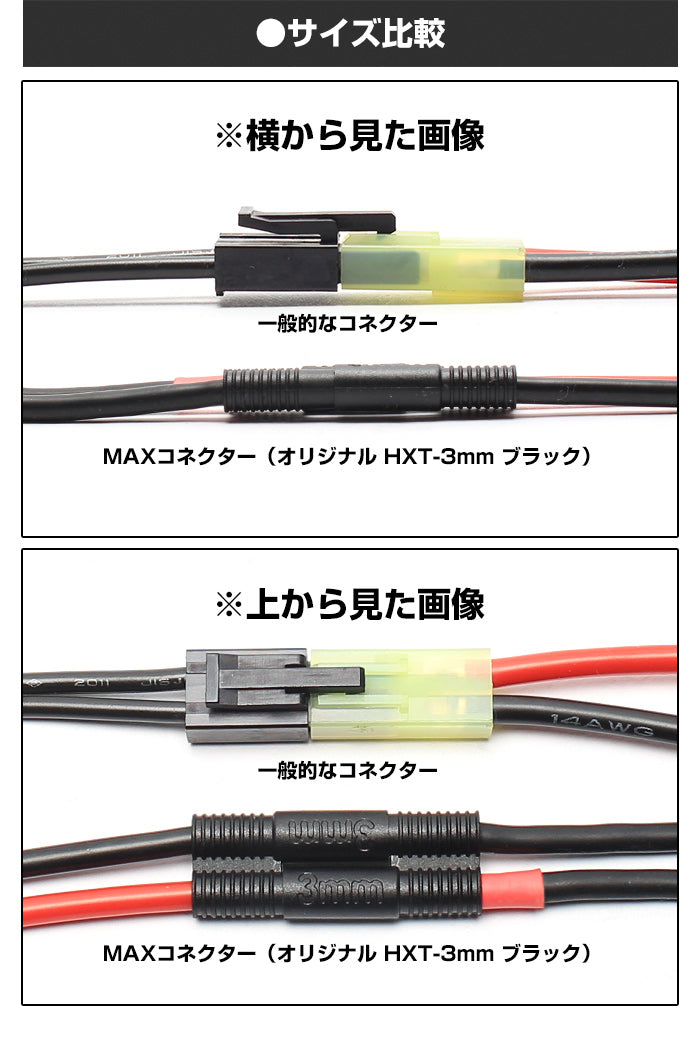

* Original design which bring out full ability of battery! * 5 times of mini-connector! MAX75A/Rated Current 45A spec! * Gold plating terminal which has good power efficiency and resistance to deterioration! * Compact size, also round & non-edge shape! * Good Cost Performance! * Stealth Black Type! Metal Terminal is made by gold plating type which has good conductivity + low resistance and wear resistance. Also, the shape of terminal is specialized and increase its contact area. For conductive performance, it is indicated approx. .6mΩ of super low-resistance value (Internal investigation) and the maximum current value is 75A. Also, the size is made as compact and easy to ensure the space. It helps to avoid an electrical short accident. *Specification: *Size at connecting a connector: Maximum thickness 6.3mm x width 13.mm x length 34.5mm approx. *For Example, Mini Connector size: Maximum thickness approx. 1.5mm x width 1.5mm x length 37.3~39.7mm *Maximum current value (approx. 1 sec): 75A *Rated Current Value: 45A *Recommended wiring standard: -Our EG element cord NEO (Outer diameter of wire-coating 1.9mm, Outer diameter of conductor 1.5mm, Cross-Sectional Area 1.27mm2) -Teflon cord 5.26~5.3sq class (*Coating of outer diameter 3.7mm and under) -Silicon cord 14AWG *Coating of outer diameter 3.7mm and under *Conductor of outer diameter 2.8mm and under
